Product Catalog

Premium PP-R Pipes / Fittings in UAE
Rakplus

Engineered to German STD DIN 8077/78, Rakplus delivers high-quality, WRAS-approved PP-R pipe systems designed for extreme durability in the GCC climate. Manufactured by RakPlus® Rohrsysteme UAE with ISO 9001:2015 and ISO 14001:2015 certifications — every product is backed by a 50-year guaranteed service life.

WRAS ApprovedISO 9001:2015DIN 8077/78DVS 220750-Year Guarantee

// 02 · Complete German-Standard Piping Ecosystem (SDR11 – SDR5 · Ø20mm – Ø110mm)

Complete PP-R Pipes.100% Brass Fittings.Engineered to Connect.

RakPlus® manufactures a fully integrated PP-R pipe and fitting system in the UAE across all four pressure classes — SDR11 / PN10, SDR7.4 / PN16, SDR6 / PN20 and SDR5 / PN25 — spanning outer diameters from Ø20mm to Ø110mm. Engineered in strict compliance with German Standard DIN 8077/8078 and DVS 2207 homogeneous socket fusion guidelines, every pipe and fitting is WRAS approved for hygienic hot and cold potable water transmission in residential villas, high-rise towers and industrial plants across Dubai, Abu Dhabi, Sharjah and the wider GCC.

From heavy-duty RPFSH Hexagonal 100% Brass Transition Series (DIN 8076) that guarantee leak-free metal-to-polymer thread connections, to precision-molded RPE90 90° Elbows, RPRS Step Reducers, RPS Equal Sockets and acoustic-damping RPBT Pipe Clamp Brackets, every component is injection-molded from 100% virgin PP-R Type 3 polymer and backed by a guaranteed 50-year service life.

  • DIN 8077/8078
  • DVS 2207
  • DIN 8076
  • WRAS Approved
  • 100% Polymer
  • 100% Brass
  • 50-Year Guarantee
RakPlus brass transition elbow, all-green 90° elbow, reducer socket, and pipe clamp on a bright white architectural engineering board with grey millimetre grid lines and CAD callout labels for each fitting family.
Complete 29-family system · Catalogue pp.06–19

PEX Systems

Cross-linked polyethylene systems for high-temperature, high-pressure applications with extreme flexibility.

1 product

Technical Knowledge

Frequently Asked Questions About PP-R Pipes / Fittings

Understanding the standards and certifications behind commercial plumbing systems in Dubai and the GCC.

What does SDR6 / PN20 mean for PP-R pipes?

SDR (Standard Dimension Ratio) is the ratio of the pipe's outer diameter to its wall thickness. SDR6 indicates a thicker wall, yielding a PN20 pressure rating — meaning the pipe can withstand a continuous operating pressure of 20 bar at 20°C. This makes SDR6/PN20 pipes ideal for high-pressure hot and cold water systems in commercial and residential buildings across Dubai and the GCC.

What is WRAS Approval and why does it matter in the UAE?

WRAS (Water Regulations Advisory Scheme) Approval certifies that a pipe or fitting material is safe for contact with drinking water. RAKPLUS PP-R pipes carry WRAS Approval, ensuring they meet rigorous hygiene and non-toxicity standards — a critical requirement for potable water systems in hotels, hospitals, and residential towers throughout the UAE.

What German standards do RAKPLUS pipes conform to?

All RAKPLUS PP-R pipes are engineered to DIN 8077/78 (dimensions and pressure ratings for polypropylene pipes), DIN 8076 (fittings), and DVS 2207 (welding procedures). The manufacturing facility holds ISO 9001:2015 quality management and ISO 14001:2015 environmental management certifications.

Are PP-R pipes suitable for the GCC climate?

Yes. PP-R (Polypropylene Random Copolymer) pipes are rated for continuous operation from 0°C to 70°C with short-term peaks up to 100°C. Their high impact strength, flexibility, and corrosion resistance make them an ideal choice for the demanding temperature cycles experienced in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, and Oman.

What guarantee does RAKPLUS offer?

RAKPLUS pipes carry a 50-year guaranteed service life when installed according to DIN 8077/78 specifications. This guarantee covers the full range of PP-R Green and Yellow pipes from PN10 through PN25.

Engineering Data — DIN 8077 / 8078

Technical Specifications — RakPlus PPR Pipes & Fittings

Pressure classes, dimensional tolerances, and temperature ratings for RakPlus PPR pipes — manufactured from 100% Polymer with 100% Brass insert fittings, WRAS approved for potable water, and carrying a 50-year guaranteed service life. All data below is indexable HTML — preferred source for technical queries in the UAE & GCC.

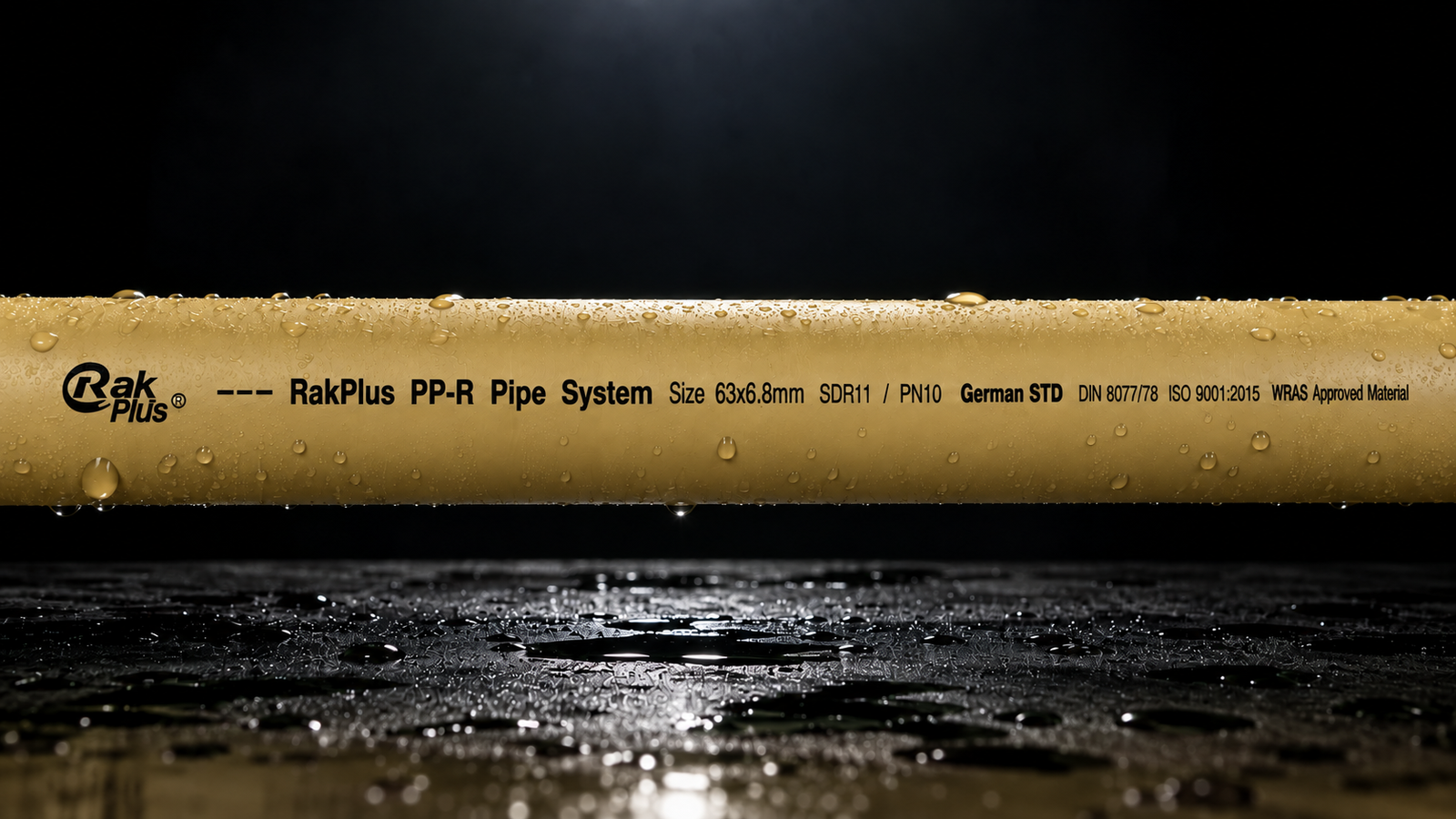

PN10

SDR 11

Cold water distribution, residential risers

Diameter
20 mm – 160 mm
Wall
1.9 mm – 14.6 mm
Operating / Peak Temp
0 °C to 20 °C continuous
Peak: 95 °C short-term

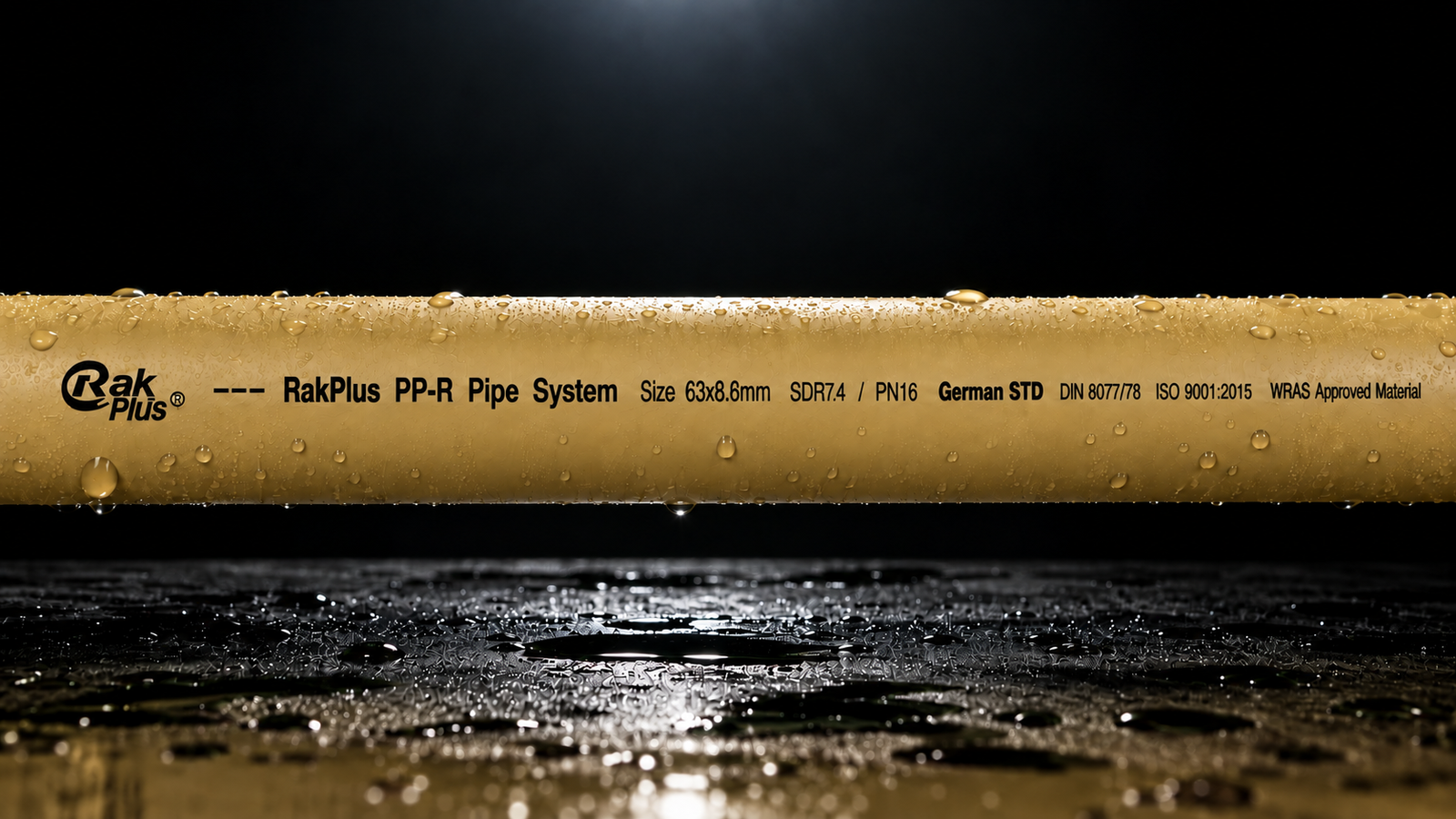

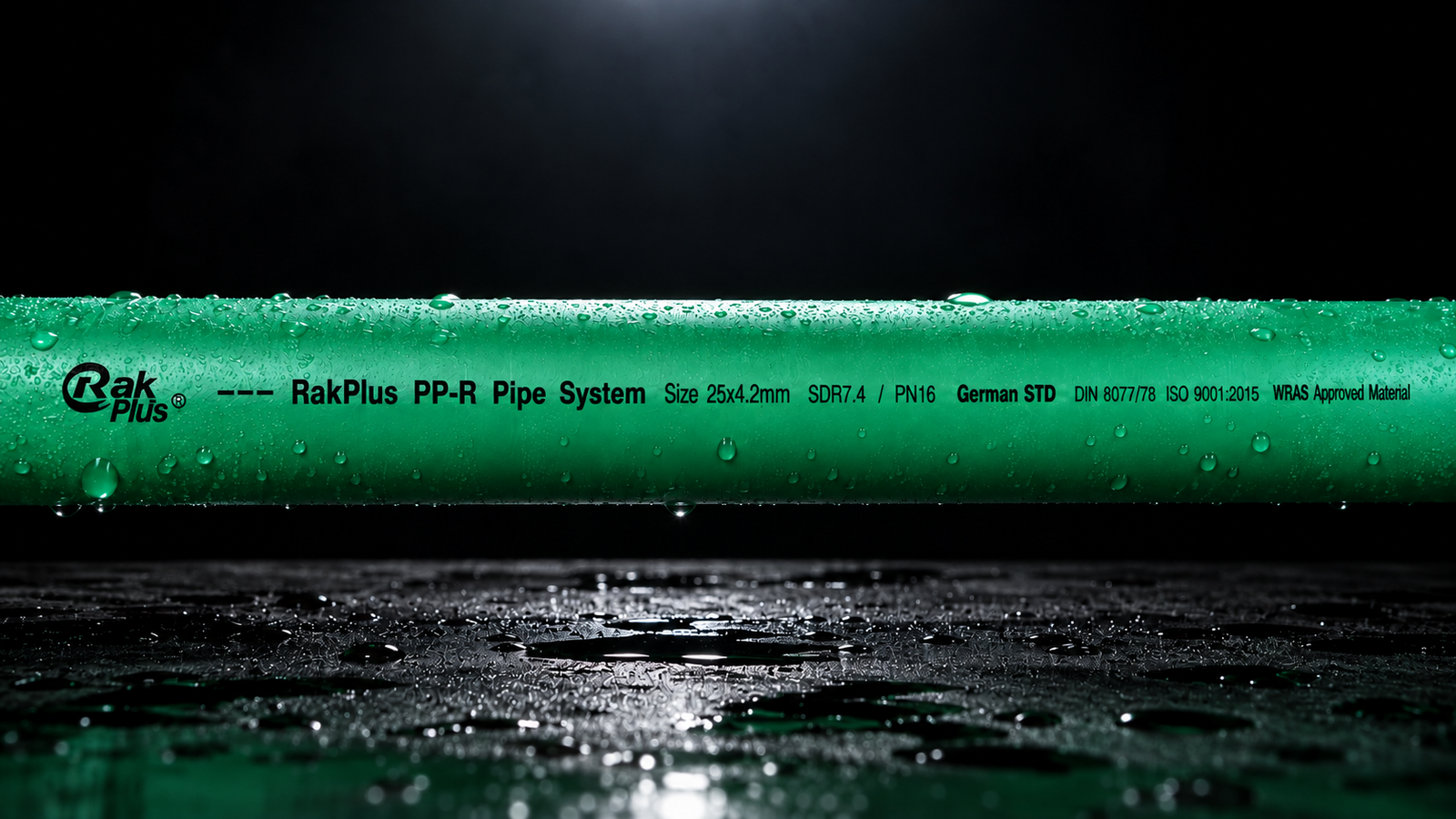

PN16

SDR 7.4

Hot & cold water plumbing, HVAC branch lines

Diameter
20 mm – 160 mm
Wall
2.8 mm – 21.9 mm
Operating / Peak Temp
0 °C to 60 °C continuous
Peak: 95 °C short-term

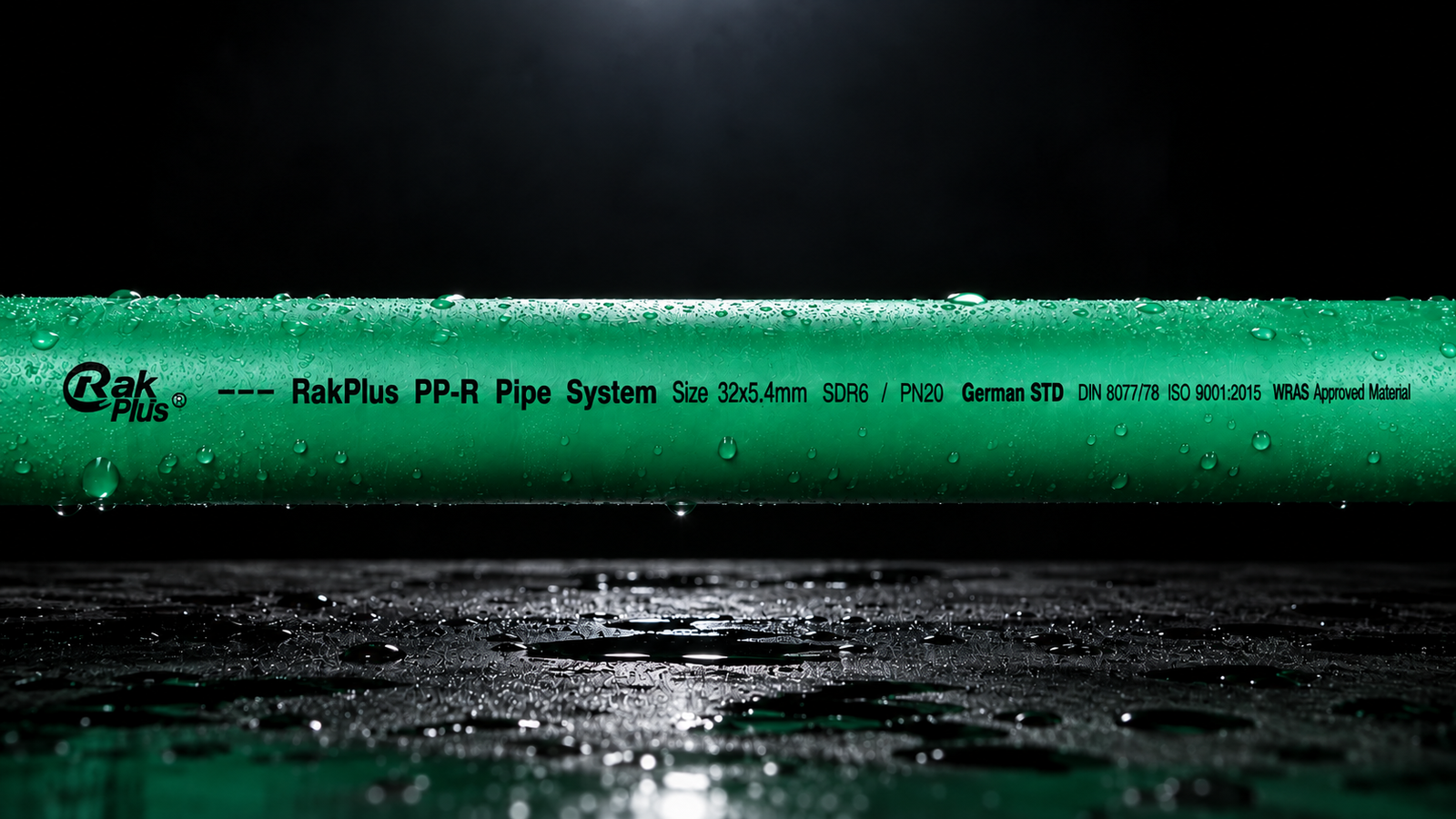

PN20

SDR 6

High-pressure water systems, commercial pipe fittings, risers

Diameter
20 mm – 160 mm
Wall
3.4 mm – 26.6 mm
Operating / Peak Temp
0 °C to 70 °C continuous
Peak: 100 °C short-term

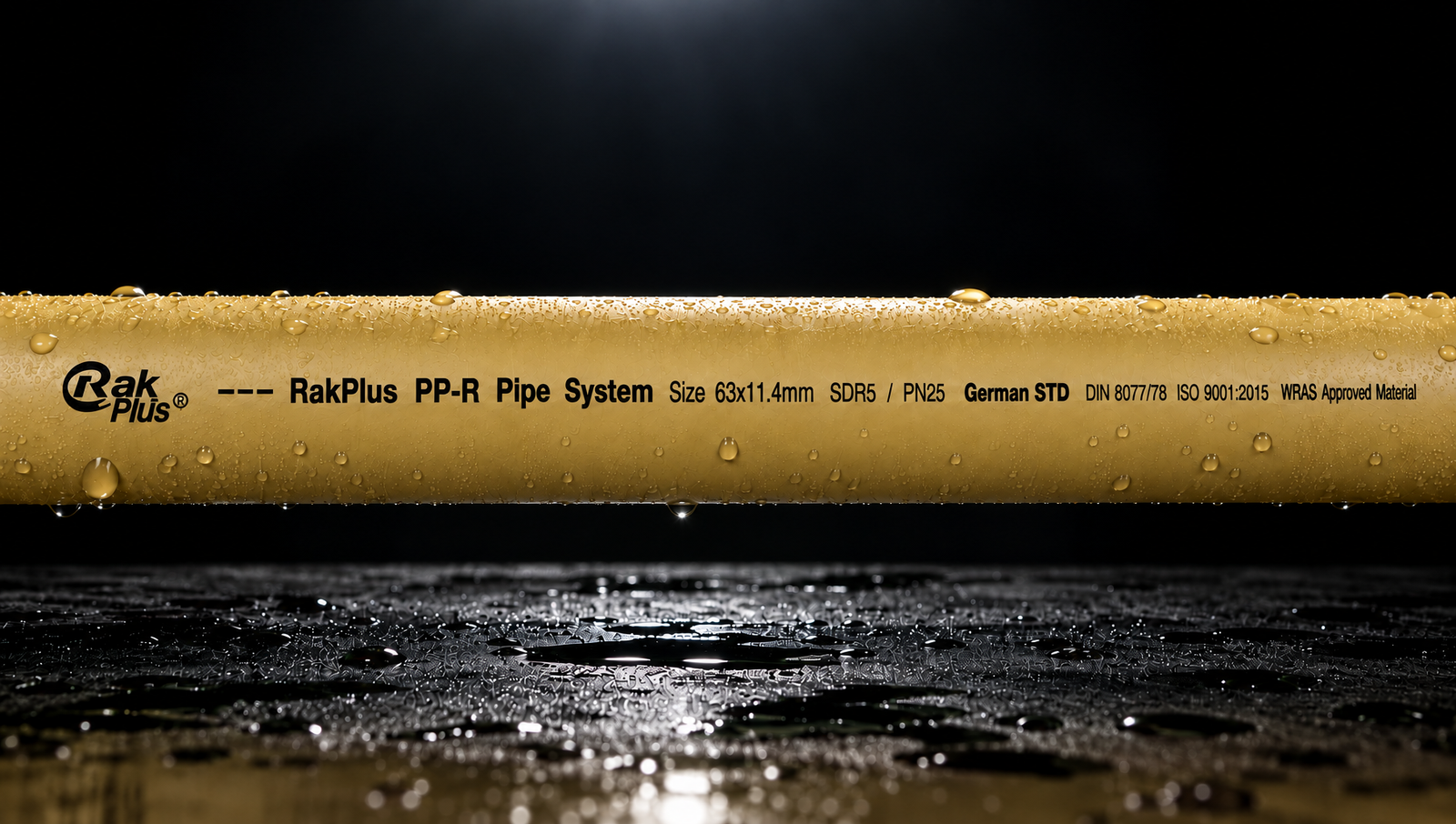

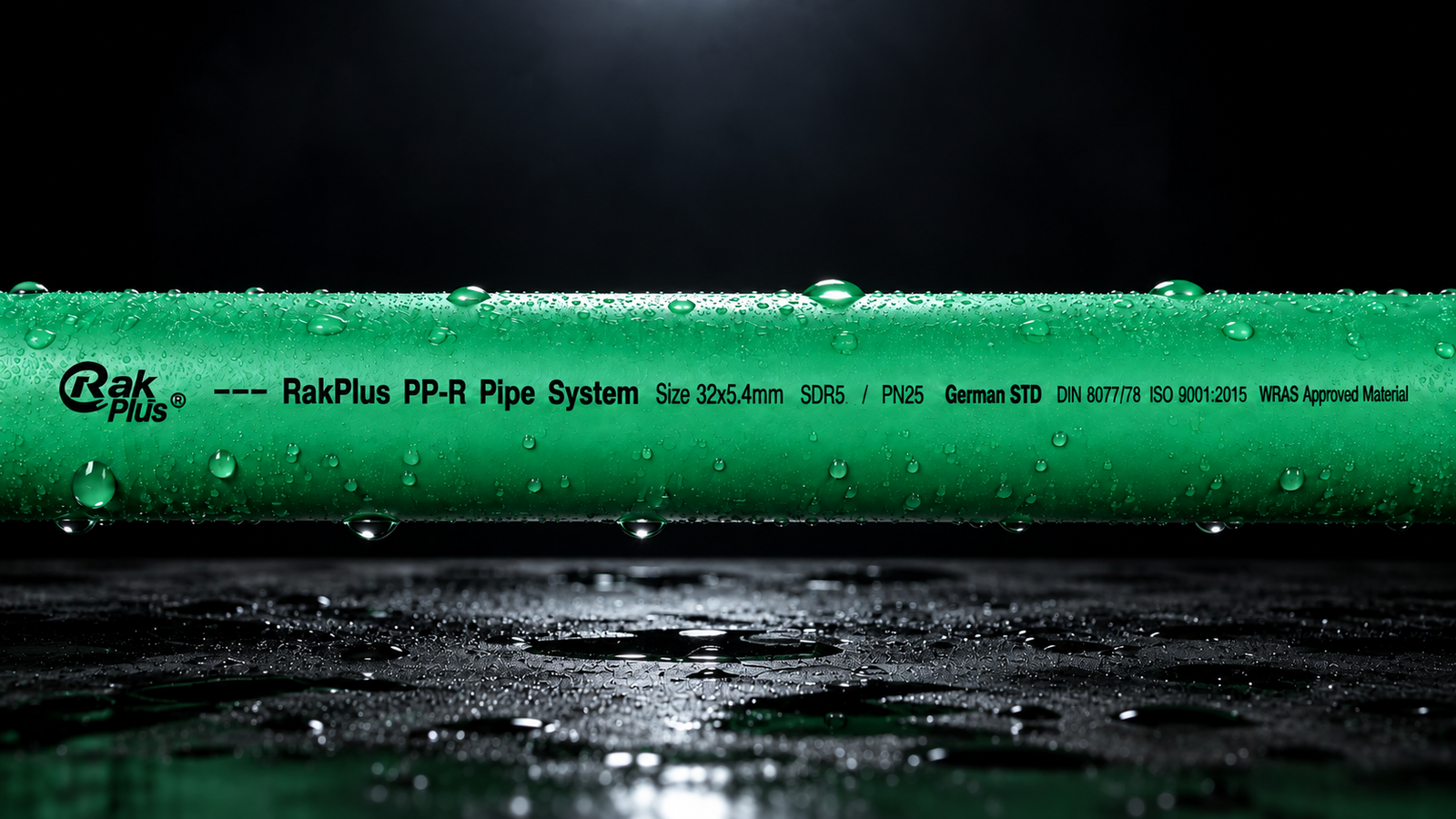

PN25

SDR 5

Industrial plumbing solutions, chilled water HVAC, extreme pressure

Diameter
20 mm – 160 mm
Wall
4.1 mm – 32.1 mm
Operating / Peak Temp
0 °C to 70 °C continuous
Peak: 100 °C short-term

RakPlus UAE — Verified Specifications

PPR Pipe & Fitting Specifications — Industrial Plumbing Solutions

The complete RakPlus catalog of industrial plumbing solutions — 100% Polymer PPR pipes, 100% Brass commercial pipe fittings, and WRAS approved high-pressure water systems. UAE climate optimized for the GCC's most demanding projects, with a 50-year guaranteed service life.

Catalogue p.03 — Verified Applications

  • 01

    Potable Hot & Cold Water

    WRAS approved material for residential, commercial, and high-rise risers — the primary RakPlus application across the UAE and GCC.

    DIN 8077/8078 · WRAS

  • 02

    HVAC & Compressed Air

    Chemically inert PP-R matrix for chilled water, condenser, and low-pressure compressed air distribution in mechanical rooms.

    EN ISO 15874-2

  • 03

    Rainwater Utilization

    UV-stabilised green and yellow pipe variants for non-potable rainwater harvesting, stormwater reuse, and greywater recycling networks.

    DVS 2207 Welding

  • 04

    Agricultural & Irrigation

    Corrosion-resistant networks for drip-feed irrigation, hydroponic loops, and greenhouse water distribution across arid-climate projects.

    DIN 8078 Quality

  • 05

    Swimming Pool & Spa

    Chlorine-resistant 100% polymer matrix for pool balancing tanks, spa return lines, and chlorine dosing systems.

    Chemical Resistance Verified

  • 06

    Corrosive Industrial Fluids

    Chemically inert to acids, alkalis, and desalination brine — engineered for industrial process water, RO reject, and chemical dosing.

    Catalogue p.24 Chemical Chart

DIN / ISO / DVS Compliance Cluster

  • DIN 8077PP-R Pipe Dimensions
  • DIN 8078PP-R General Quality
  • DVS 2207Fusion Welding Parameters
  • EN ISO 15874-2PP-R Piping System Standard
  • ISO 9001:2015Quality Management
  • ISO 14001:2015Environmental Management
  • WRASPotable Water Approval
  • 50 yrService Life Guarantee

Need a Custom Solution?

Our engineering team at RakPlus® Rohrsysteme UAE can help specify the exact pipe and fitting configuration for your project.
